光分路器

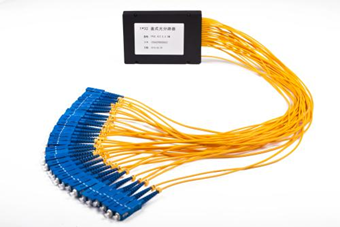

PLC分路器器件

产品特点:
» 损耗对光波长不敏感,可以满足不同波长的传输需要。
» 分光均匀,可以将信号均匀分配给用户。
» 结构紧凑,体积小
» 单只器件分路通道很多,可以达到32路以上。
» 多路成本低,分路数越多,成本优势越明显。

产品应用:
» FTTX 网络布置
» 光无源网络
» 有线电视线路及光信号的分束


Specifications:

1×N splitter module

Type 1x2 1x3 14 1x6 1x8 1x12 1x16 1x24 1x32 1x128
Operating Wavelength (nm) 1260-1650
IL max(dB) 3.8 6.2 7.0 9.5 10.2 12.6 13.5 16.2 16.6 25
Uniformity (dB) ≤ 0.6 ≤ 0.6 ≤ 0.6 ≤ 0.8 ≤ 0.8 ≤ 1 ≤ 1 ≤ 1.3 ≤ 1.3 ≤ 2.5
PDL (dB) ≤0.15 ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.4
Return Loss  (dB) ≥ 55
Directivity (dB) ≥ 55
Temperature Dependent Loss (dB) ≤ 0.5
Maximum Power Handling (mW) 500
Fiber Type G657A1 or customer specified
Operating Temperature (℃) -40~+85
Storage Temperature (℃) -40~+85
Package size (L×W×H,mm) 40x4x4 50×7×4 N/A


  1. All parameters are tested at 1310nm&1550nm and room temperature;
  2. The IL are tested without connector loss, add an additional 0.2dB loss per connector; Return Loss≥55dB(APC),≥50dB(UPC);


2×N splitter module

Type 2x2 2x4 2x8 2x16 2x32 2x64
Operating Wavelength (nm) 1260-1650
IL max(dB) 4.2 7.2 10.5 14 17.2 20.6
Uniformity max (dB) 0.8 1 1 1.5 1.8 3
PDL max (dB) 0.2 0.3 0.3 0.3 0.3 0.4
Return Loss  (dB) ≥ 55
Directivity (dB) ≥ 55
Temperature Dependent Loss (dB) ≤ 0.5
Maximum Power Handling (mW) 500
Fiber Type G657A1 or customer specified
Operating Temperature (℃) -40~+85
Storage Temperature (℃) -40~+85
Package size (L×W×H,mm) 40x4x4 50x4x4 60x7x4 60x12x4

  1. All parameters are tested at 1310nm&1550nm and room temperature;
  2. The IL are tested without connector loss, add an additional 0.2dB loss per connector; Return Loss≥55dB(APC),≥50dB(UPC);


1×2 (2×2) special splitter module

Split Ratio 50:50 60:40 70:30 80:20 90:10 95:5 98:2 99:1
Operating Wavelength (nm) 1260-1650
Main Port IL max(dB) 4 3 2.3 1.8 1.5 1.2 1 0.8
Drop Port  IL max(dB) 4 5.3 6.7 8.3 12 15.2 19.3 22.8
Uniformity max (dB) 0.8 0.8 0.8 0.8 1.2 1.2 1.8 2.2
PDL max (dB) 0.2 0.2 0.2 0.25 0.3 0.4 0.6 0.6
Return Loss  (dB) ≥ 55
Directivity (dB) ≥ 55
Temperature Dependent Loss (dB) ≤ 0.5
Maximum Power Handling (mW) 500
Fiber Type G657A1 or customer specified
Operating Temperature (℃) -40~+85
Storage Temperature (℃) -40~+85
Package size (L×W×H,mm) 40x4x4
  1. All parameters are tested at 1310nm&1550nm and room temperature;
  2. The IL are tested without connector loss, add an additional 0.2dB loss per connector; Return Loss≥55dB(APC),≥50dB(UPC);


N×(1×2) (N×(2×2)) special splitter array and other type splitter

Array Number (N) N = 1,2,4,8,16
Split Ratio 50:50 60:40 70:30 80:20 90:10 95:5 98:2 99:1
Operating Wavelength (nm) 1260-1650
Main Port IL max(dB) 4.2 3.2 2.5 2 1.7 1.4 1.2 1
Drop Port  IL max(dB) 4.2 5.5 6.9 8.5 12.1 15.4 19.6 23.2
Uniformity max (dB) 0.8 0.8 1 1 1.5 1.5 2 2.5
PDL max (dB) 0.2 0.2 0.2 0.25 0.3 0.4 0.6 0.6
Return Loss  (dB) ≥ 55
Directivity (dB) ≥ 55
Temperature Dependent Loss (dB) ≤ 0.5
Maximum Power Handling (mW) 500
Fiber Type G657A1 or customer specified
Operating Temperature (℃) -40~+85
Storage Temperature (℃) -40~+85
Package size (L×W×H,mm) 60x7x4

  1. All parameters are tested at 1310nm&1550nm and room temperature;
  2. The IL are tested without connector loss, add an additional 0.2dB loss per connector; Return Loss≥55dB(APC),≥50dB(UPC);
